Building and Running

You have met the build commands one at a time. This chapter pulls them together: how to compile a single file, a program made of many files, your forms, and (when your app grows) a shared library of common functions — all with the stock Aubit 4GL tools, no special scripts required.

The three commands, recapped

Command	Compiles	Produces
4glpc	One or more .4gl files → program	.4ae executable
4glc	.4gl → object, or a library	.ao object / .so library
fcompile	A .per form	compiled form (.xml)

The file types you will see:

Extension	What it is
.4gl	4GL source code
.per	Form source
.ao	Compiled object (one module)
.so	Shared library
.4ae	Runnable program
.xml	Compiled form

A single-file program

4glpc -o hello.4ae hello.4gl
./hello.4ae

-o names the output. That is the whole story for a one-file program.

A multi-file program

Real programs span several files — globals, main, and one file per area of logic. The simplest way is to hand all of them to 4glpc at once:

4glpc -o app.4ae g_app.4gl main.4gl customers.4gl orders.4gl

4glpc compiles each file and links them into one app.4ae. List g_app.4gl (your globals) first so the variables it defines are known to the files that use them.

Faster rebuilds: compile, then link

When a project gets large, recompiling every file each time is wasteful. Compile each file to an object (.ao) once, and only recompile the ones you change; then link the objects together:

# compile each module to an object file
4glc -o g_app.ao    g_app.4gl
4glc -o main.ao      main.4gl
4glc -o customers.ao customers.4gl
4glc -o orders.ao    orders.4gl

# link the objects into the program
4glpc -o app.4ae g_app.ao main.ao customers.ao orders.ao

Now, after editing orders.4gl, you only re-run its 4glc line and the final link step. A Makefile automates this nicely once you outgrow typing it by hand.

Compiling forms

Compile each form with fcompile -xml:

fcompile -xml product.per
fcompile -xml people.per

To compile every form in a directory in one go:

for f in *.per; do fcompile -xml "$f"; done

Forms compile independently of your program: change a form, re-run fcompile; change code, re-run 4glpc. They do not depend on each other at build time.

Sharing code: GLOBALS files

Variables that several files need (often called g_*.4gl by convention) go in a globals file:

-- g_app.4gl
GLOBALS
    DEFINE g_company   CHAR(40)
    DEFINE g_user      CHAR(20)
END GLOBALS

Any file that needs them includes the file at the top with a GLOBALS directive:

-- customers.4gl
GLOBALS "g_app.4gl"

FUNCTION show_company()
    DISPLAY "Company: ", g_company CLIPPED
END FUNCTION

Include the globals file in your build (as in the multi-file examples above) and the variables are shared across all modules.

A shared library (optional, for larger apps)

When many programs reuse the same helper functions, compile those helpers once into a shared library instead of linking them into every program. Build a library from .4gl sources with the --as-dll option:

4glc --as-dll -o libhelpers.so util.4gl format.4gl lookup.4gl

Then link a program against it:

4glpc -o app.4ae main.4gl -L. -lhelpers

-L. tells the linker to look in the current directory, and -lhelpers links libhelpers.so (the linker adds the lib prefix and .so suffix). At run time, make sure the library is findable:

export LD_LIBRARY_PATH=.:$LD_LIBRARY_PATH

Libraries are an optimisation for big projects. For your first applications, just hand all the .4gl files to 4glpc — it is simpler and fast enough.

A sensible project layout

A small project might look like this:

myapp/
├── env.sh            # the environment from chapter 1
├── g_app.4gl         # global variables
├── main.4gl          # MAIN + the top-level menu
├── customers.4gl     # logic, one file per area
├── orders.4gl
├── customer.per      # forms, one per screen
├── orders.per
└── build.sh          # the commands below

build.sh could be as simple as:

#!/bin/bash
set -e
source ./env.sh
for f in *.per; do fcompile -xml "$f"; done
4glpc -o myapp.4ae g_app.4gl main.4gl customers.4gl orders.4gl
echo "Built myapp.4ae"

Running

With the VDC client started and listening (see chapter 1), run the program directly — a .4ae is an ordinary executable:

./myapp.4ae

If your program expects arguments (for example a company or database name), pass them after the program name:

./myapp.4ae acme sales_db

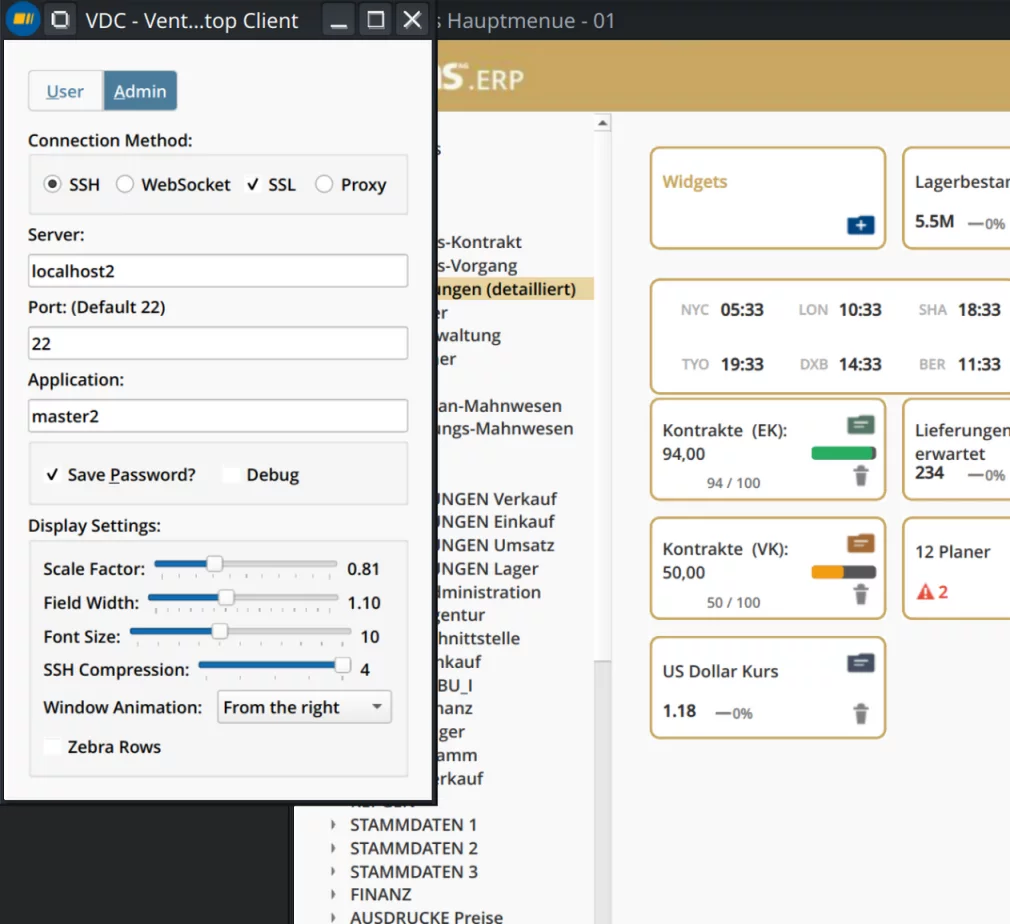

The client's own settings panel — how it reaches the application (server, port, application) and per-user display options (scale, font size, animations). These are client-side; your program is unchanged.

Troubleshooting

Symptom	Likely cause and fix
undefined reference to 'function_x'	A file that defines function_x was left out of the link — add it to the 4glpc line.
The program runs but no window appears	The client is not listening, or A4GL_UI/AFGLSERVER/AFGLPORT are wrong. Recheck chapter 1.
form 'product' not found at run time	The compiled form is not on the search path — run it from the form's directory, or add the directory to DBPATH.
A form change does not show up	You edited the .per but did not re-run fcompile -xml.
A code change does not take effect	You edited the .4gl but did not re-run 4glpc, or you ran an old .4ae.
Dates or numbers look wrong	Check DBDATE (dates) and your locale variables.

Read the compiler output. When a compile fails, the error text names the file and line. Fix compile errors (syntax, unknown variables) first; only then do link-time errors (undefined references) make sense to chase.

That is the full loop, from a blank file to a running application. For a condensed cheat-sheet of types, operators, functions and environment variables, see the Quick Reference.
